Bridge Cable System

Chainson Industrial develops different anchoring methods based on the various requirements

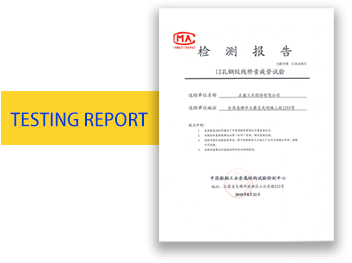

2,000,000 times Fatique Testing PASS!

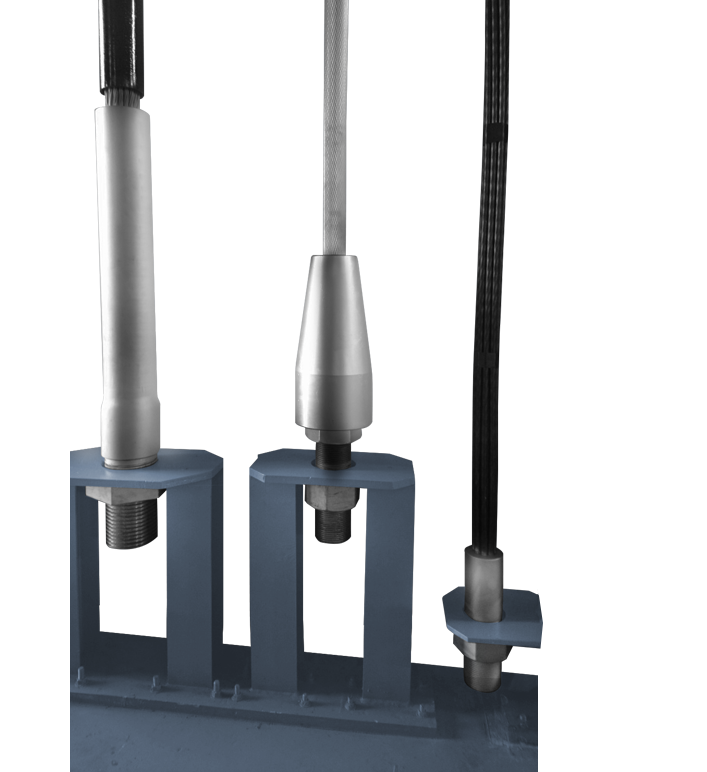

In the factory, the anchor is formed using a machine to push and press the bundle. The anchor demonstrates effective performance and has passed 2,000,000 cycles of repeated load fatigue testing, indicating excellent fatigue resistance. The end anchor is adjustable with a threaded and nut-type mechanism, allowing for length and tension adjustments. This type of anchor is commonly used in cable-stayed bridges, suspension bridges, and arch bridge cables.

In addition to the cable specifications listed on the website, custom production of steel cables can also be carried out according to the designs of different projects.

Steel strand type

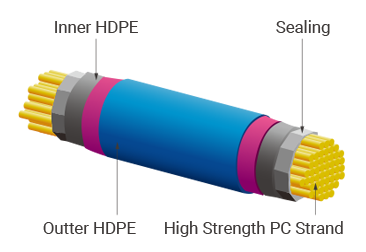

Consists of multiple steel strands. After being coated with anti-corrosion oil, it is covered with a dual-layer of heat-extruded high-density polyethylene (HDPE) on the outer layer, providing multiple layers of corrosion protection to ensure long-term anti-corrosion capability for bridge cables.
Bridge cables
  • The bridge cables are fully produced in Taiwan.
  • The product are delivered to the construction site in coil form to facilitate efficient site operations.
  • The ends of the bridge cables are equipped with steel strand push-in type anchors, ensuring effective anchoring.
  • The color of the outer layer of the coated bridge cables can be chosen to match the local environment or overall design aesthetics.

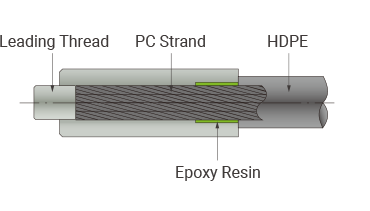

Anchor
  • The anchor steel pipe is made of SCM440 material with metal spray anti-corrosion treatment. For environments with high exposure to seawater, humidity, or salt, the anchor steel pipe can be custom-made from duplex stainless steel, which offers high strength and excellent corrosion resistance.
  • Epoxy resin is injected into the end of the anchor to increase fatigue resistance.
  • The anchor is adjusted and secured using threaded bolts and nuts, allowing for easy pre-stressing and tension adjustment of the bridge cables.
  • The anchor section also undergoes metal spray anti-corrosion treatment
PC strands
  • High-strength PC steel strands are used, conforming to CNS3332 (ASTM A416) standards with 1860 MPa grade in Ø9.5mm to Ø15.2mm, or ASTM A882 Ø15.2mm (epoxy resin coated).

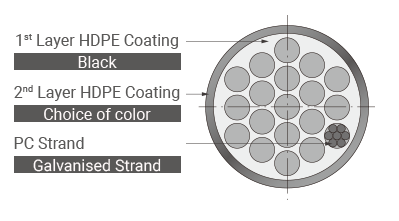

  • The steel strands are coated with anti-corrosion oil and covered with a dual-layer HDPE, providing multiple layers of corrosion protection and sufficient coating thickness for enhanced weather resistance.

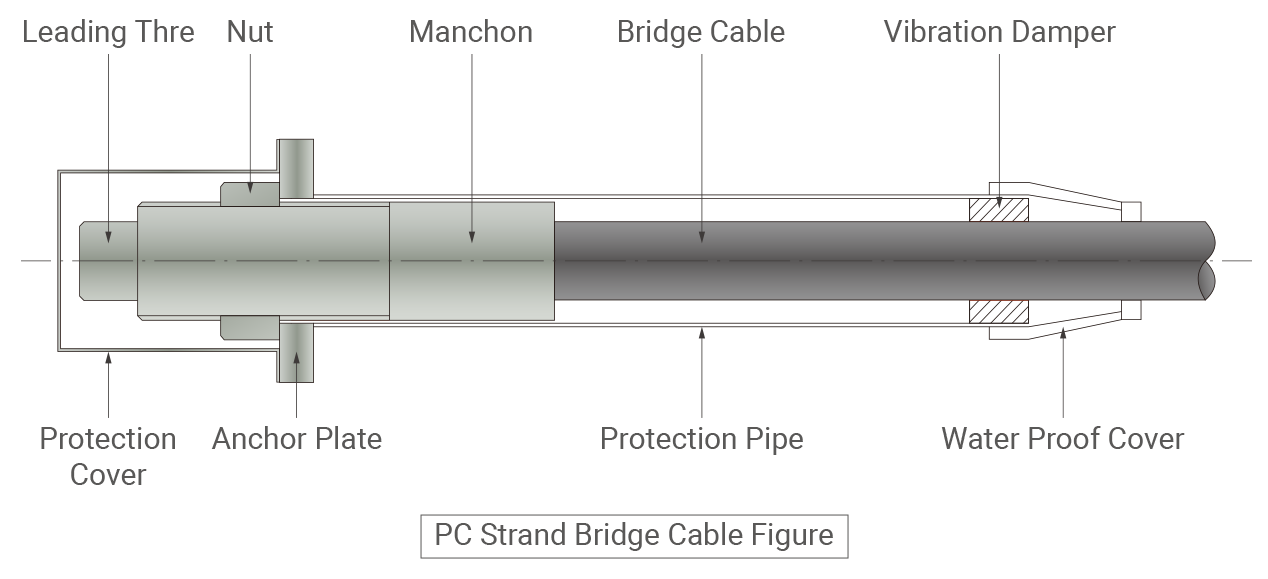

PC Strand Bridge Cable Construction
Specifications Cross Sectional Area Unit Weight Diametre Breaking Load
Unit mm² kg/m mm kN
7-9.5mm 383.9 3.65 38.5 714
7-11.1mm 519.3 4.89 43.3 966
7-12.7mm 691.0 6.51 48.1 1281
7-15.2mm 970.9 9.78 61.6 1680
19-9.5mm 1042.0 9.93 63.5 1938
19-11.1mm 1409.6 13.37 75.5 2622
19-12.7mm 1875.5 17.58 83.5 3477
19-15.2mm 2635.3 24.62 96.0 4959
22-15.2mm 3051.4 30.59 117 5720
37-12.7mm 3652.2 33.45 117 6771
37-15.2mm 5131.9 50.28 145 9620
PC Strand Bridge Cable Specifications

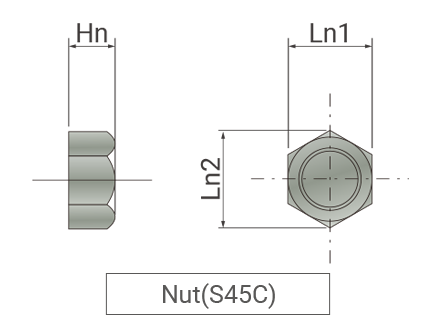

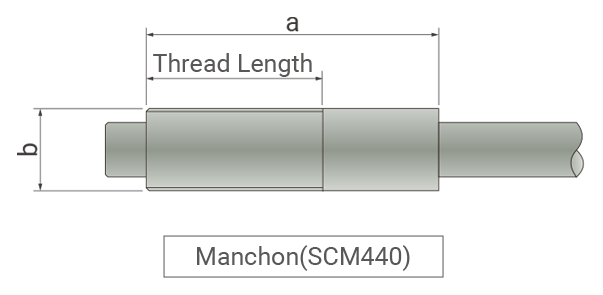

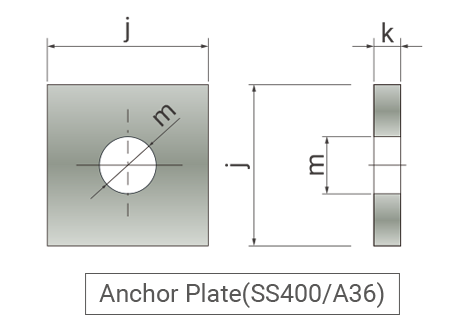

Specifications a b Ln1 Ln2 Hn j k m
Unit mm
7-9.5mm 410 55.4 82 94 45 160 28 65
7-1.1mm 485 62 93 107 60 180 30 72
7-12.7mm 580 68 97 112 60 230 36 78
7-15.2mm 675 78 115 133 63 240 38 88
19-9.5mm 675 82 120 139 66 250 38 92
19-11.1mm 730 94 135 156 75 300 45 104
19-12.7mm 965 120 170 196 96 330 55 130
19-15.2mm 1180 140 185 210 102 400 65 150
22-15.2mm 1180 160 210 230 102 400 65 170
37-12.7mm 1180 160 210 230 120 400 65 170
37-15.2mm 1180 200 260 285 120 500 65 210
Steel Wire Type
Using high-strength galvanized steel wire in compliance with ASTMA421 Ø5MM or Ø7MM standards.
Bridge Cables
  • The finished cables are delivered to the construction site in coiled packaging to save on-site work.
  • The outer color of the bridge cables can be chosen to match the local environment or enhance the overall aesthetic design.
Anchorage
  • The anchorage section uses threaded bolts and nuts for adjustment and fixation, making prestressing and cable tension adjustment convenient.
Steel Wire
  • High-strength galvanized steel wire complying with ASTMA421 Ø5mm or Ø7mm standards is used.
  • The galvanized steel wires are tightly arranged in a hexagonal pattern, secured with high-strength polyester wrapping tape, and coated with a double layer of HDPE for multiple corrosion protection. The coating provides sufficient thickness, offering better weather resistance.
Technical Parameter Table for Galvanized Steel Wire Cable with a Diameter of Ø5, σb=1670MPa
Model Cross Sectional
Area		 Theoretical
Weight		 Black SIngle Cover
StructuralH-Type		 Black Inner coloured outter layer,
Double C Type		 Breaking Load
Diameter Unit Weight Diameter Unit Weight
Unit cm² kg/m mm kg/m mm kg/m kN
PES()5-19 3.73 2.9 ø35 3.4 ø39 3.7 623
PES()5-37 7.26 5.7 ø45 6.4 ø49 6.7 1213
PES()5-55 10.80 8.5 ø51 9.3 ø55 9.6 1803
PES()5-61 11.98 9.4 ø55 10.4 ø59 10.8 2000
PES()5-73 14.33 11.3 ø59 12.4 ø63 12.8 2394
PES()5-85 16.69 13.1 ø61 14.2 ø65 14.6 2787
PES()5-91 17.87 14.0 ø65 15.4 ø69 15.8 2984
PES()5-109 21.40 16.8 ø68 18.1 ø72 18.5 3574
PES()5-121 23.76 18.7 ø71 20.0 ø75 20.4 3968
PES()5-127 24.94 19.6 ø75 21.2 ø79 21.7 4164
PES()5-139 27.29 21.4 ø78 23.2 ø82 23.7 4558
PES()5-151 29.65 23.3 ø79 24.9 ø83 25.4 4951
Technical Parameter Table for Galvanized Steel Wire Cable with a Diameter of Ø7, σb=1670MPa
Model Cross Sectional
Area		 Theoretical
Weight		 Black SIngle Cover
StructuralH-Type		 Black Inner coloured outter layer,
Double C Type		 Breaking Load
Diameter Unit Weight Diameter Unit Weight
Unit cm² kg/m mm kg/m mm kg/m kN
PES()7-37 14.24 11.2 ø61 12.4 ø65 12.8 2378
PES()7-55 21.17 16.6 ø68 17.0 ø72 18.3 3535
PES()7-61 23.48 18.4 ø73 20.0 ø77 20.5 3920
PES()7-73 28.09 22.1 ø78 23.7 ø82 24.2 4692
PES()7-85 32.71 25.7 ø83 27.5 ø87 28.0 5463
PES()7-91 35.02 27.5 ø89 29.8 ø93 30.4 5848
PES()7-109 41.95 32.9 ø93 35.1 ø97 35.7 7005
PES()7-121 46.57 36.6 ø99 39.1 ø103 39.7 7777
PES()7-127 48.88 38.4 ø105 41.6 ø109 42.2 8162
PES()7-139 53.49 42.0 ø107 45.1 ø111 45.7 8933
PES()7-151 58.11 45.6 ø109 48.5 ø113 49.2 9705
PES()7-163 62.73 49.2 ø114 52.5 ø118 53.2 10476
PES()7-187 71.97 56.5 ø121 60.0 ø1285 60.8 12018
PES()7-199 73.58 60.1 ø124 63.7 ø128 64.5 12790
PES()7-211 81.20 63.7 ø129 67.8 ø133 68.6 13561
PES()7-223 85.82 67.4 ø133 71.7 ø137 72.6 14332
PES()7-241 92.75 72.8 ø135 76.9 ø139 77.7 15489
PES()7-253 97.37 76.4 ø139 80.8 ø143 81.7 16260
PES()7-265 101.98 80.1 ø144 85.0 ø148 85.9 17031
PES()7-283 108.91 85.5 ø147 90.4 ø151 91.3 18188
PES()7-301 115.84 90.9 ø151 96.0 ø155 96.9 19345
PES()7-313 120.46 94.6 ø154 99.8 ø158 100.8 20116
PES()7-337 129.69 101.8 ø160 107.5 ø164 108.5 21659
PES()7-349 134.31 105.4 ø162 111.2 ø166 112.2 22430
PES()7-367 141.24 110.9 ø167 117.1 ø171 118.1 23587
PES()7-379 145.86 114.5 ø170 121.0 ø174 122.0 24358
PES()7-409 157.40 126.6 ø176 130.4 ø180 131.5 26286
PES()7-421 162.02 127.2 ø177 133.8 ø181 134.9 27057
PES()7-439 168.95 132.6 ø183 140.2 ø187 141.3 28214
PES()7-451 193.57 136.2 ø185 143.9 ø189 145.0 28985
PES()7-475 182.80 143.5 ø190 151.6 ø194 152.7 30528
Customised Production

We customise the design and product based on your need
