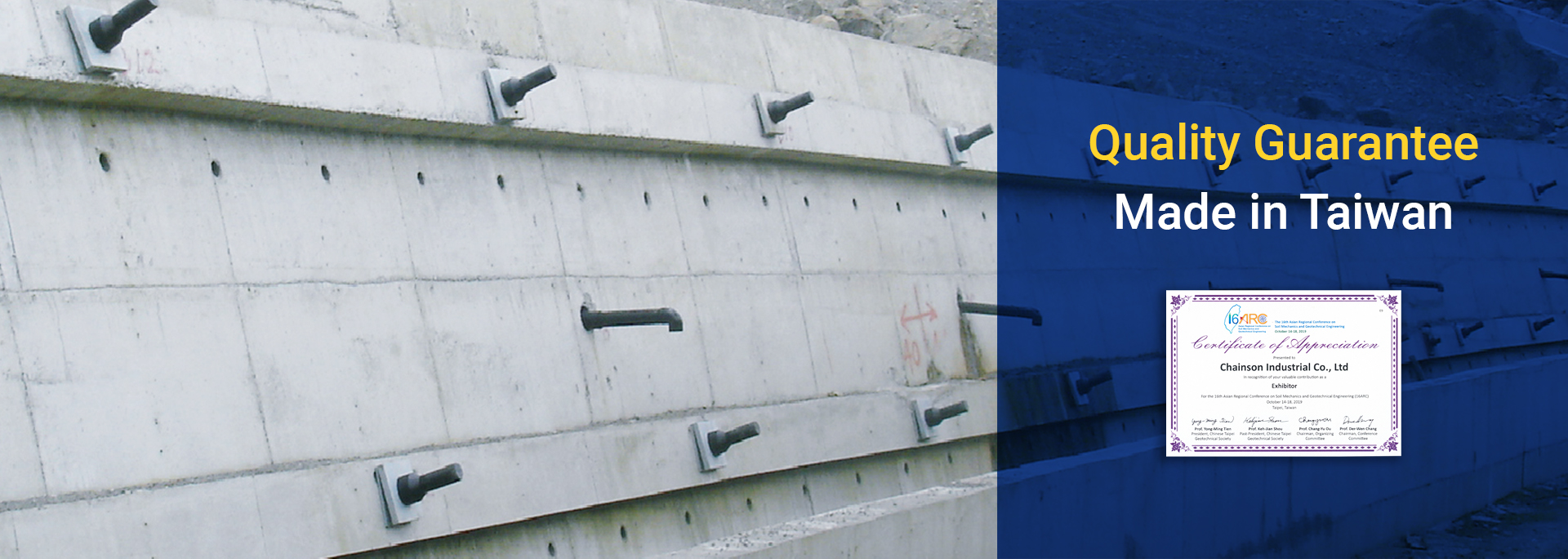

Ground Anchor

Double Corrosion Prevention
  • In the free section of the ground anchor, the steel strands are coated with anti-corrosion grease as the primary corrosion protection measure. The outer layer is then covered with high-density polyethylene (HDPE), providing dual-layer corrosion protection and excellent durability.
Re-tensionable
  • The ground anchor anchor section is made of high-strength alloy steel (SCM440) and is mechanically anchored in the factory, providing excellent gripping force.
  • The end anchor features a threaded nut locking design, allowing for easy pre-stressing adjustment and ensuring that the end anchor remains reliable and less likely to fail during an earthquake
Easy to Install

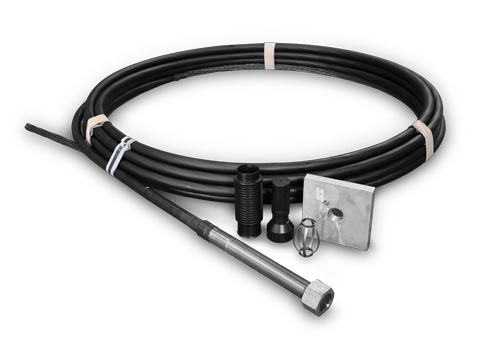

  • Manufactured in a factory setting, the finished product consists of a steel cable with threaded ends, making installation extremely convenient and significantly reducing assembly work on site.
  • Packaging

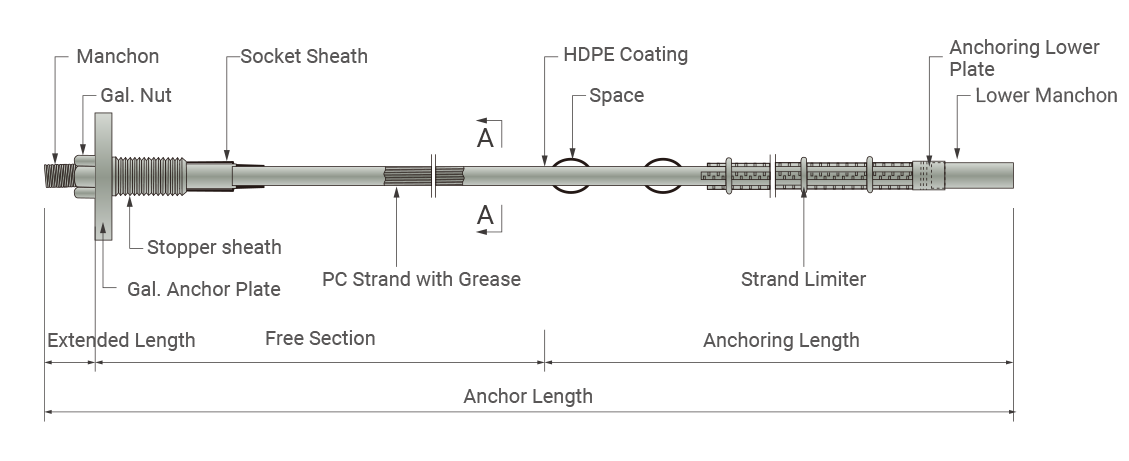

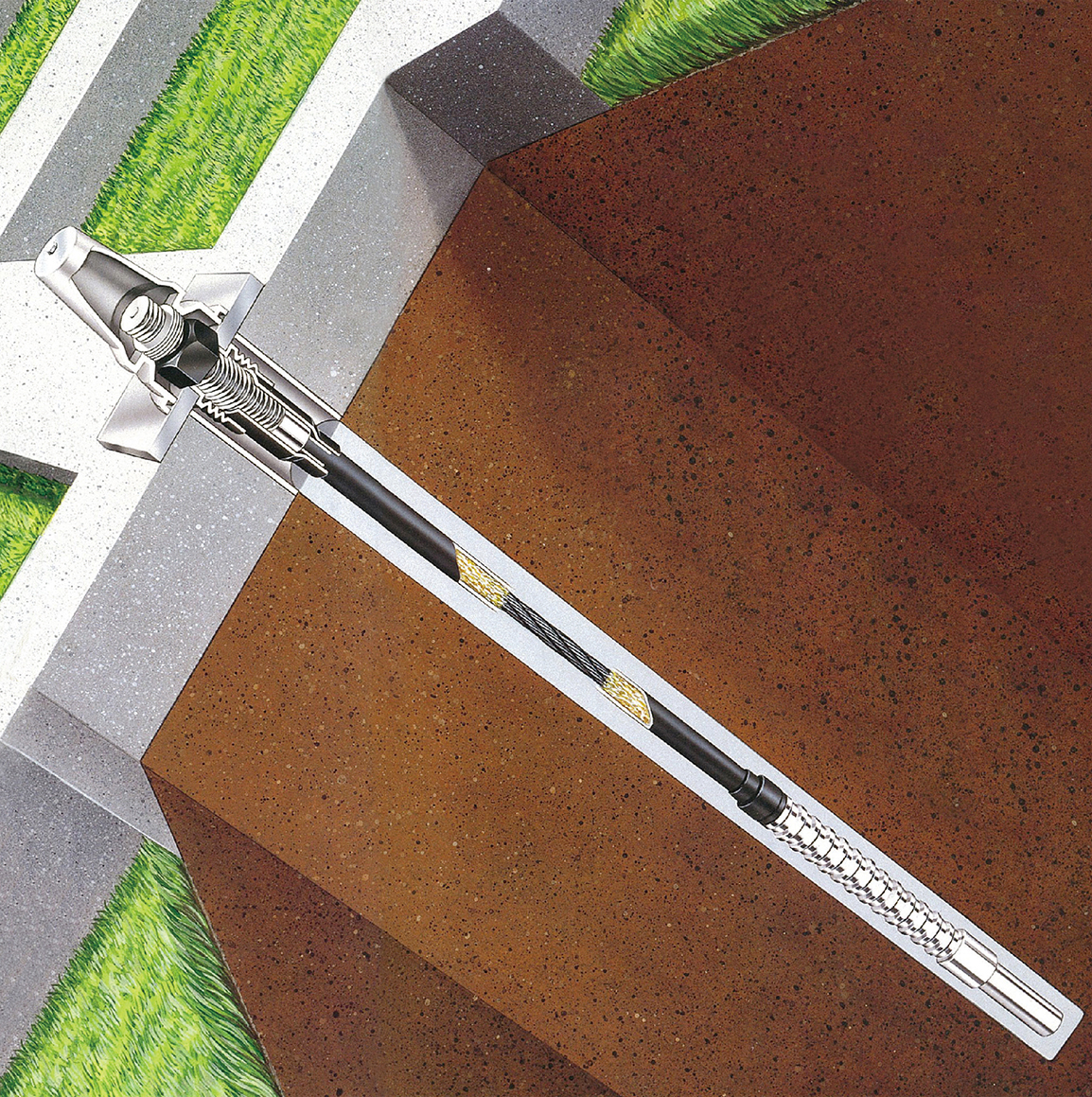

Cross-Sectional View

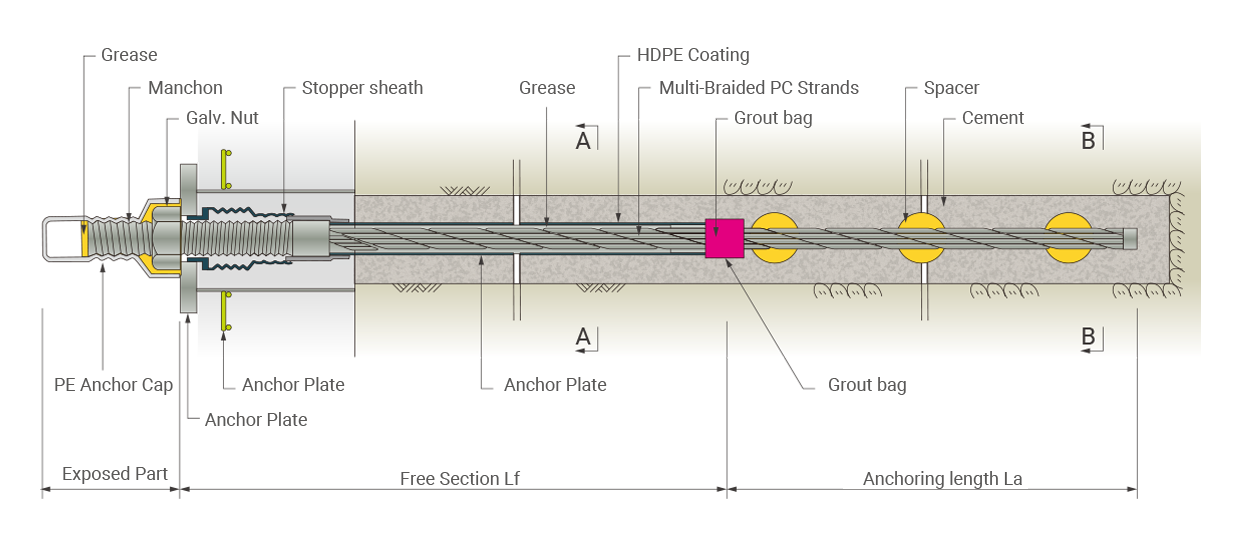

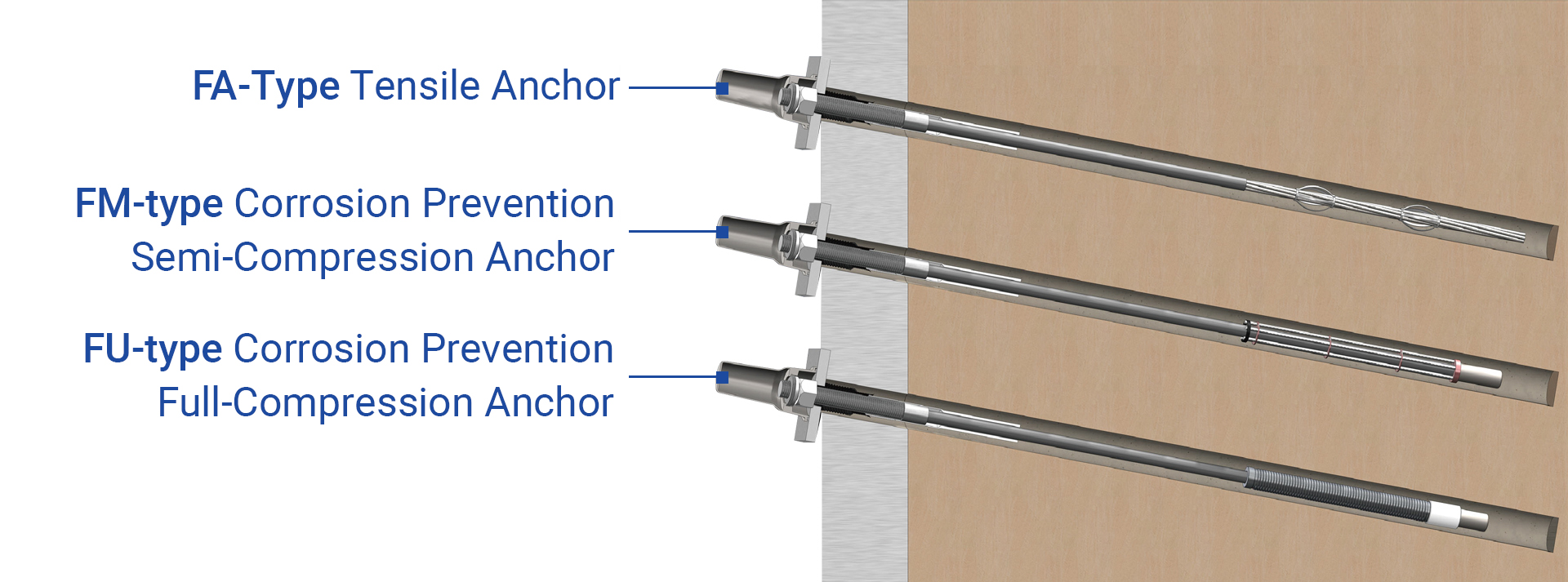

Free Section and Anchor Section

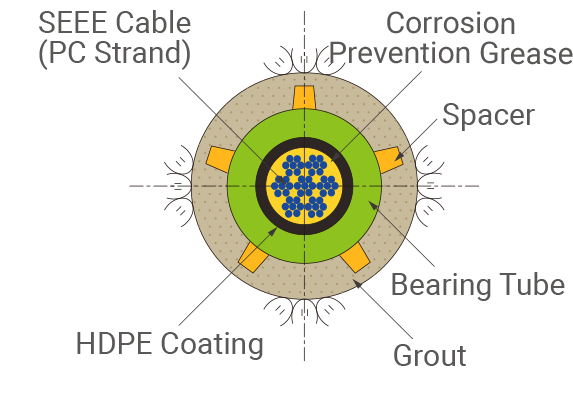

A-A Sectional View-Free Section
  • PC steel strands are filled with anti-corrosion grease and coated with HDPE, implementing dual-layer corrosion protection.
B-B Sectional View-Anchoring Section
  • The PC steel strands are coated with cement grout mixed with non-shrink additives, and the anchor section is pressure-grouted to enhance anchoring performance.

Features

Corrosion-resistant Structure
  • Uses ground anchor protective covers and anti-corrosion grease for protection.
  • Pressure plates and nuts are hot-dip galvanized.
  • Rippled protective pipes and heat-shrink films are used to block water and harmful
  • During factory production, the anchor steel tube is pressed together with the HDPE coating material to ensure that the internal steel tendons are protected from moisture and corrosion.

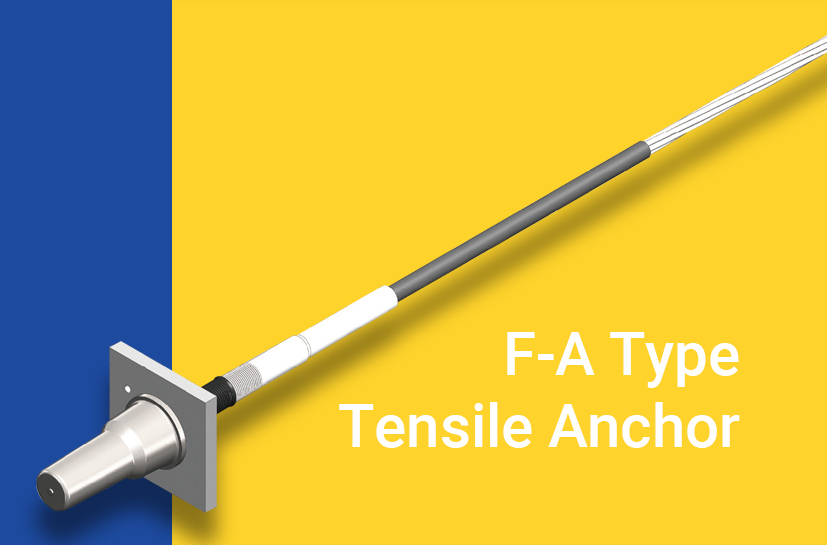

F-A type Cross Section
Note: Largest Breaking load is 500T.
[SI Unit]
Item Unit F-70A F-100A F-130A F-160A F-200A F-270A F-360A
Structure mm 7×Ø9.5 7×Ø11.1 7×Ø12.7 7×Ø15.2 19×Ø9.5 19×Ø11.1 19×Ø12.7
Diametre mm 28.5 33.3 38.1 45.6 47.5 55.5 63.5
Cross Sectional Area mm² 383.9 519.5 691 970.9 1042 1409.6 1875.5
Unit Weight kg/m 3.04 4.09 5.45 7.75 8.77 11.1 15.7
Breaking Load tf[kN] 72.8 [714] 98.7 [966] 130.9 [1281] 171.5 [1680] 197.6 [1938] 267.9 [2622] 355.3 [3477]
Yield Strength tf[kN] 62 [608] 84 [826] 111.3 [1092] 145.6 [1428] 168.2 [1649] 228 [2242] 264 [2584]
Allowable Load
Engineering Assumption 0.65Tus Tastf[kN] 74.3 [464.1] 64.15 [627.9] 85 [832.6] 111.4 [1092] 128.4 [1259.7] 174.1 [1704.3] 230.9 [2260]
Perminant Anchoring Regular
0.6Tus		 Tastf[kN] 43.68 [428.4] 59.22 [579.6] 78.54 [768.6] 102.9 [1008] 118.5 [1162.8] 160.74 [1573.2] 213.2 [2086.2]
Earth Quake
0.75Tus		 Tastf[kN] 54.6 [535.5] 74.02 [724.5] 98.17 [960.7] 128.6 [1260] 148.2 [1453.5] 200.92 [1453.5] 266.47 [2607.7]
Cross Section A-A mm

F-A Type PE Covering Specifications

Item Unit F-70T F-100T F-130T F-160T
a mm 60 68 72 86
b mm 45 45 68 70
c mm 300 250 300 330
d mm 100 106 120 140
e mm 28 28 28 45

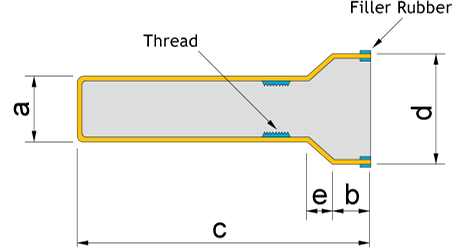

F-A Type Accessory Dimension

Note: The anchor steel pipe can also be made using SUS304.

Item Unit F-70M F-100M F-130M F-160M F-200M F-270M F-360M
Anchor tube a mm 48 55.4 62 72 82 94 110
b mm 380 410 490 550 550 610 680
c mm 250 300 410 460 460 520 570
Quantity kg 3.2 5.4 8.5 12.6 17.3 24.7 37.1

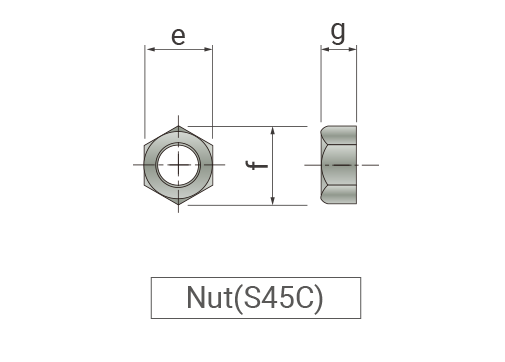

Nut e mm 75 82 93 110 120 135 155
f mm 86.5 94 107 127 139 156 173
g mm 45 45 60 63 66 75 80
Quantity kg 1.1 1.2 1.9 3.1 3.5 5.2 8.0
Anchor Plate h mm 260 280 320 350 400 440 490
i mm 36 36 38 40 45 50 55
j mm 58 65 71 83 94 105 120
Quantity kg 18.4 21.2 29.4 36.8 54.1 72.6 98.8

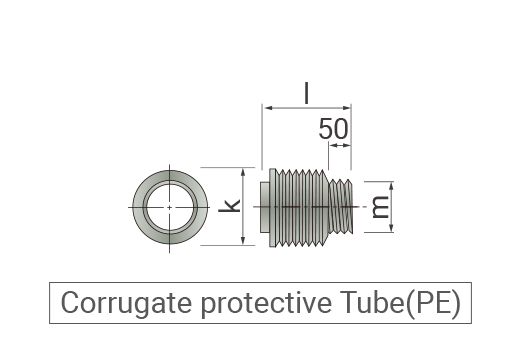

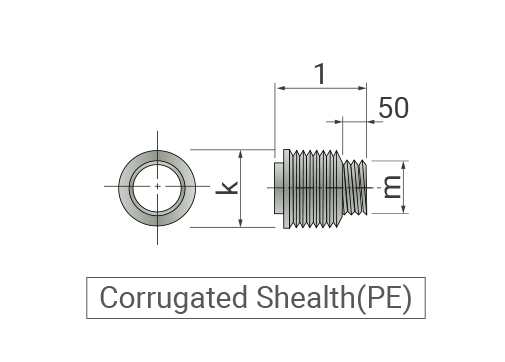

Corrugate Protective Tube k mm 75 85 95 100 110 125 140
l mm 165 170 210 265 270 295 320
m mm 61.4 68.8 75.4 85.4 95.4 103.4 123.4
Thread Reference mm 90 115 115 135 146 146 165

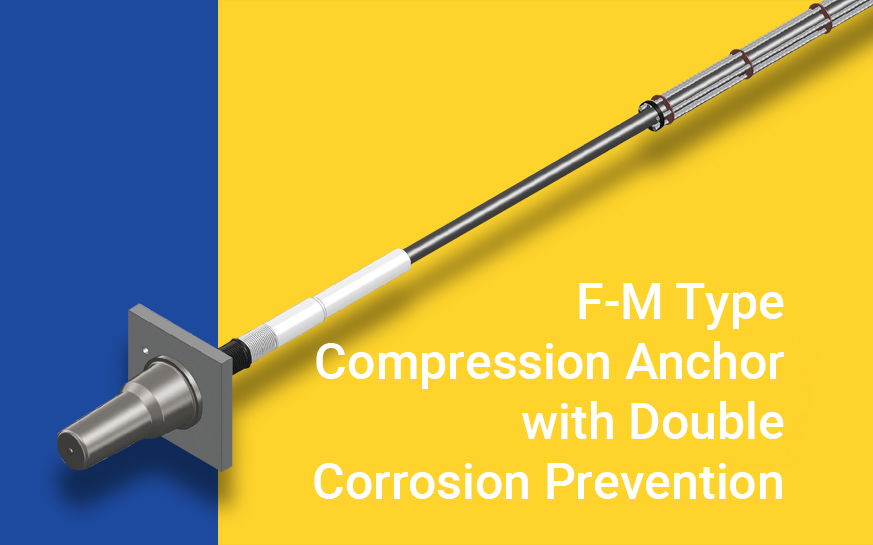

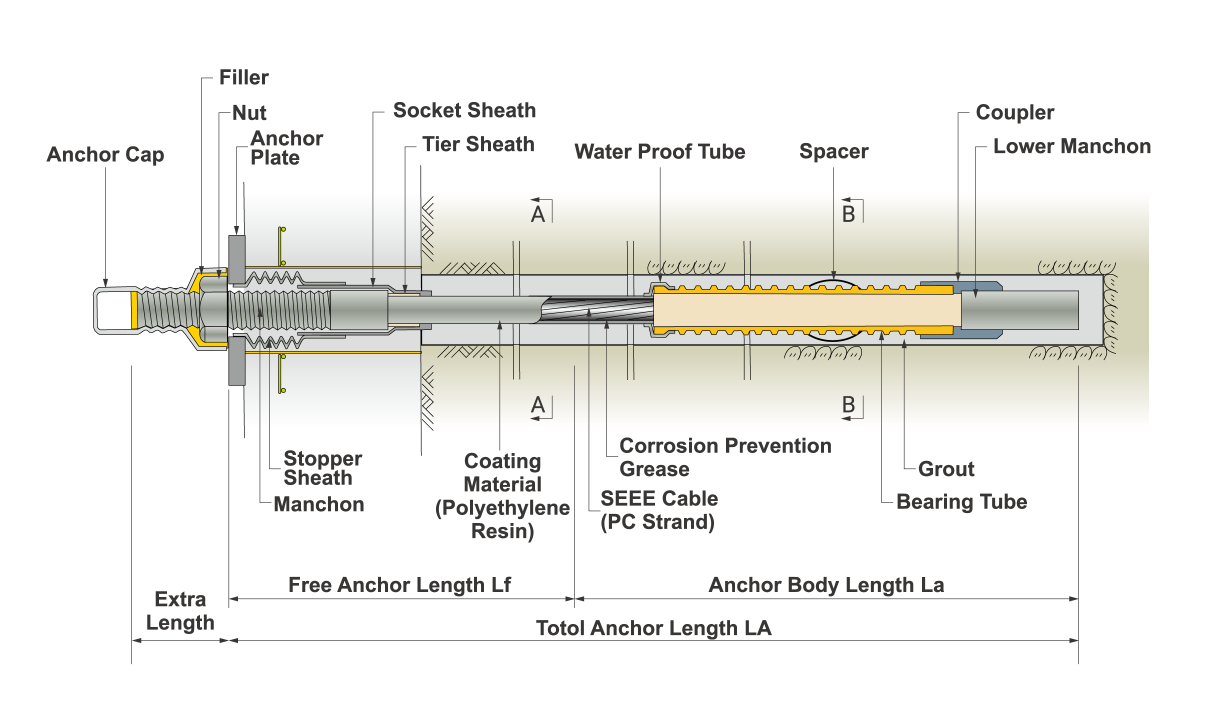

Cross-Sectional View

Free Section and Anchor Section

A-A Sectional View-Free Section
  • PC steel strands are filled with anti-corrosion grease and coated with HDPE, implementing dual-layer corrosion protection.
B-B Sectional View-Anchoring Section
  • The PC steel strands are coated with cement grout mixed with non-shrink additives, and the anchor section is pressure-grouted to enhance anchoring performance.

Features

  • The anchor head is locked with threaded nuts, making tension adjustments easy and ensuring that the anchor head and anchor stay intact during an earthquake.
  • The grouted section of the anchor withstands pressure, preventing tension cracks in the grout.
  • The compression-type ground anchor bears pressure from the bottom, making it suitable for environments with poor geological conditions.
  • It effectively resists repeated loading, providing stable performance.
  • The entire set of ground anchor steel tendons is filled with anti-corrosion oil and coated with HDPE for double corrosion protection.

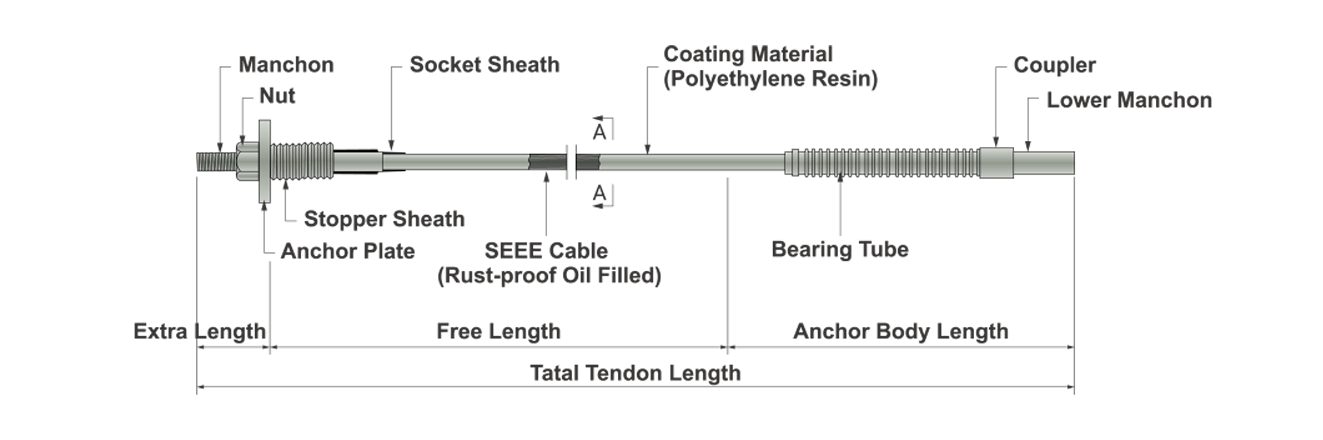

FM type Structure
Note: Largest Breaking load is 500T.
[SI Unit]
Item Unit F-70M F-100M F-130M F-160M F-200M F-270M F-360M
Structure mm 7×Ø9.5 7×Ø11.1 7×Ø12.7 7×Ø15.2 19×Ø9.5 19×Ø11.1 19×Ø12.7
Diametre mm 28.5 33.3 38.1 45.6 47.5 55.5 63.5
Cross Sectional Area mm² 383.9 519.5 691 970.9 1042 1409.6 1875.5
Unit Weight kg/m 3.04 4.09 5.45 7.75 8.77 11.1 15.7
Breaking Load tf[kN] 72.8 [714] 98.7 [966] 130.9 [1281] 171.5 [1680] 197.6 [1938] 267.9 [2622] 355.3 [3477]
Yield Strength tf[kN] 62 [608] 84 [826] 111.3 [1092] 145.6 [1428] 168.2 [1649] 228 [2242] 264 [2584]
Allowable Load
Engineering Assumption 0.65Tus Tastf[kN] 74.3 [464.1] 64.15 [627.9] 85 [832.6] 111.4 [1092] 128.4 [1259.7] 174.1 [1704.3] 230.9 [2260]
Perminant Anchoring Regular
0.6Tus		 Tastf[kN] 43.68 [428.4] 59.22 [579.6] 78.54 [768.6] 102.9 [1008] 118.5 [1162.8] 160.74 [1573.2] 213.2 [2086.2]
Earth Quake
0.75Tus		 Tastf[kN] 54.6 [535.5] 74.02 [724.5] 98.17 [960.7] 128.6 [1260] 148.2 [1453.5] 200.92 [1453.5] 266.47 [2607.7]
Cross Section A-A mm

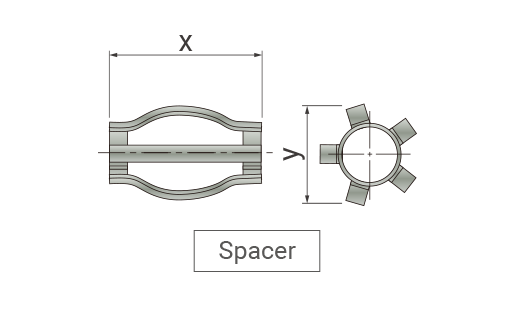

FM-Type Accessories

Item Unit F-70M F-100M F-130M F-160M F-200M F-270M F-360M
Manchon a mm 48 55.4 62 72 82 94 110
b mm 380 410 490 550 550 610 680
c mm 250 300 410 460 460 520 570
Quantity kg 3.2 5.4 8.5 12.6 17.3 24.7 37.1
Nut e mm 75 82 93 110 120 135 155
f mm 86.5 94 107 127 139 156 173
g mm 45 45 60 63 66 75 80
Quantity kg 1.1 1.2 1.9 3.1 3.5 5.2 8.0
Anchor Plate h mm 260 280 320 350 400 440 490
i mm 36 36 38 40 45 50 55
j mm 58 65 71 83 94 105 120
Quantity kg 18.4 21.2 29.4 36.8 54.1 72.6 98.8
Corrugated Shealth k mm 75 85 95 100 110 125 140
l mm 165 170 210 265 270 295 320
m mm 61.4 68.8 75.4 85.4 95.4 103.4 123.4
Thread Reference mm 90 115 115 135 146 146 165

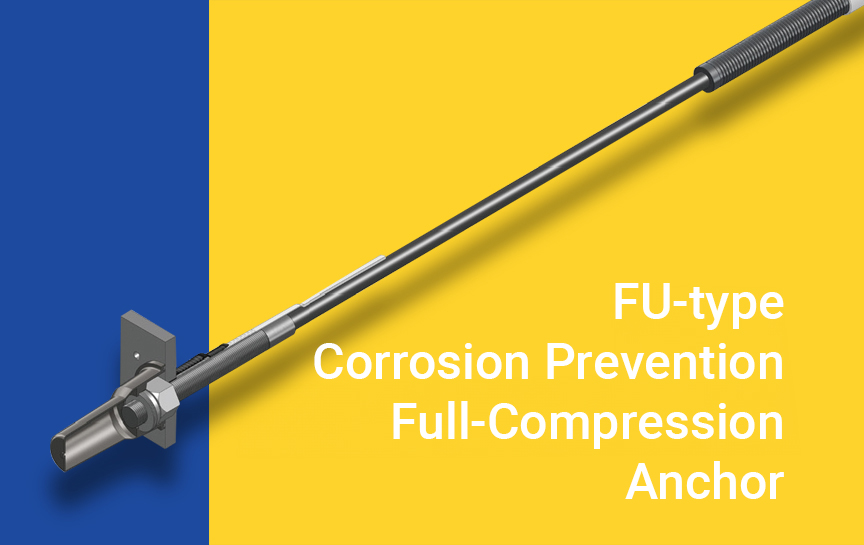

Cross-Sectional View

Free Section and Anchor Section

A-A Sectional View-Free Section
  • The PC steel strand is filled with anti-corrosion oil and coated with HDPE material, providing dual corrosion protection treatment
B-B Sectional View-Anchoring Section
  • The PC steel strand is encased with non-shrink additive cement grout, and pressure grouting is used to fully fill the anchoring section to enhance the anchoring effect

Features

  • The anchor head is locked with a threaded nut, making tension adjustments easy and ensuring that the anchor head and anchor remain intact during an earthquake.
  • The grouted section of the anchor withstands pressure without causing tensile cracks in the grout.
  • The compression-type ground anchor bears pressure from the bottom, making it suitable for environments with poor geological conditions.
  • It effectively resists repeated loads, providing stable performance.
  • The entire ground anchor steel tendon is filled with anti-corrosion oil and coated with HDPE, offering dual corrosion protection.
Structure
Note: Largest Breaking load is 500T.
[SI Unit]
Item Unit F-70A F-100A F-130A F-160A F-200A F-270A F-360A
Structure mm 7×Ø9.5 7×Ø11.1 7×Ø12.7 7×Ø15.2 19×Ø9.5 19×Ø11.1 19×Ø12.7
Diametre mm 28.5 33.3 38.1 45.6 47.5 55.5 63.5
Cross Sectional Area mm² 383.9 519.5 691 970.9 1042 1409.6 1875.5
Unit Weight kg/m 3.04 4.09 5.45 7.75 8.77 11.1 15.7
Breaking Load tf[kN] 72.8 [714] 98.7 [966] 130.9 [1281] 171.5 [1680] 197.6 [1938] 267.9 [2622] 355.3 [3477]
Yield Strength tf[kN] 62 [608] 84 [826] 111.3 [1092] 145.6 [1428] 168.2 [1649] 228 [2242] 264 [2584]
Allowable Load
Engineering Assumption 0.65Tus Tastf[kN] 74.3 [464.1] 64.15 [627.9] 85 [832.6] 111.4 [1092] 128.4 [1259.7] 174.1 [1704.3] 230.9 [2260]
Perminant Anchoring Regular
0.6Tus		 Tastf[kN] 43.68 [428.4] 59.22 [579.6] 78.54 [768.6] 102.9 [1008] 118.5 [1162.8] 160.74 [1573.2] 213.2 [2086.2]
Earth Quake
0.75Tus		 Tastf[kN] 54.6 [535.5] 74.02 [724.5] 98.17 [960.7] 128.6 [1260] 148.2 [1453.5] 200.92 [1453.5] 266.47 [2607.7]
Cross Section A-A mm

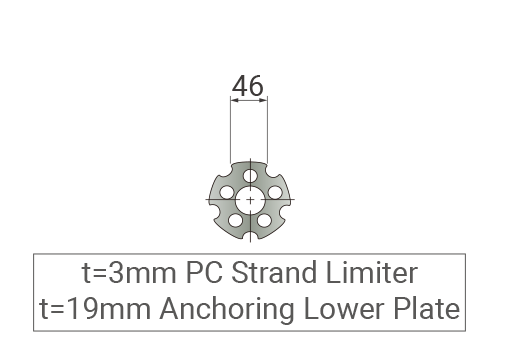

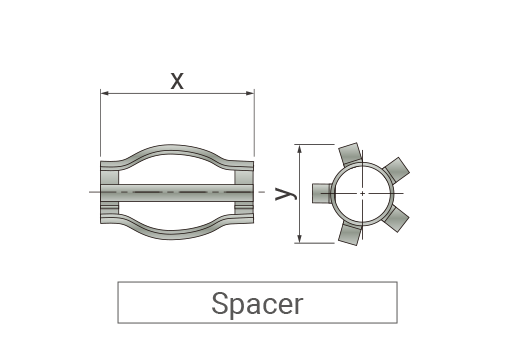

FU Accessories

Item Unit F-70U F-100U F-130U F-160U
Manchon a mm 48 55.4 62 72
b mm 380 410 490 650
c mm 250 300 410 550
Quantity kg 3.2 5.4 8.5 15.5
Nut e mm 75 82 93 110
f mm 86.5 94 107 127
g mm 45 45 60 63
Quantity kg 1.1 1.2 1.9 3.1
Anchor Plate h mm 260 280 320 350
i mm 36 36 38 40
j mm 58 65 71 83
Quantity kg 18.4 21.2 29.4 36.8
Corrugated Shealth n mm 54 65 73 79.5
o mm 2100 2400 2800 3400
Anchor Ring n1 mm 63 73 81 95
n2 mm 105 110 115 120
Thread Reference - 90 115 115 135

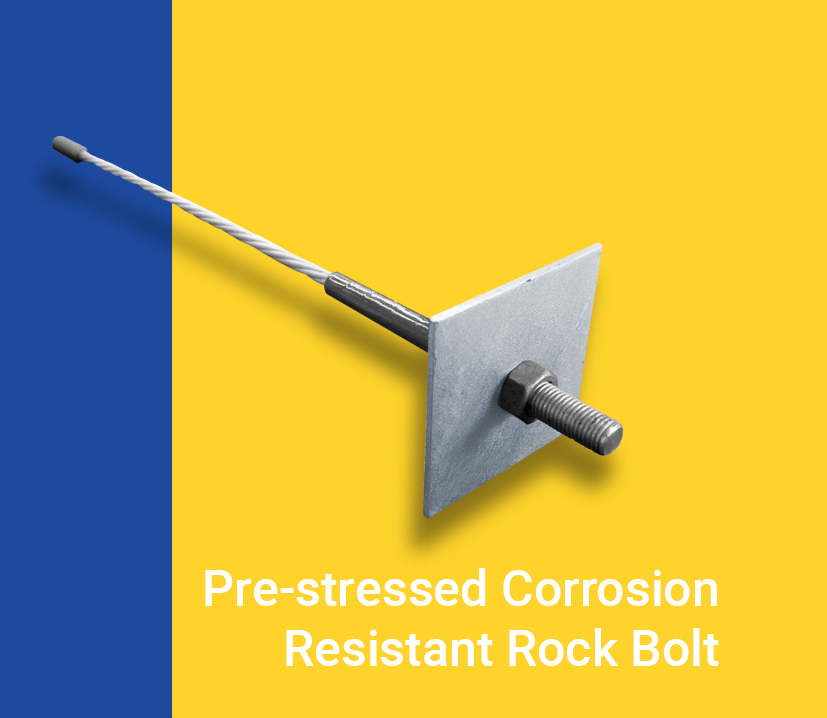

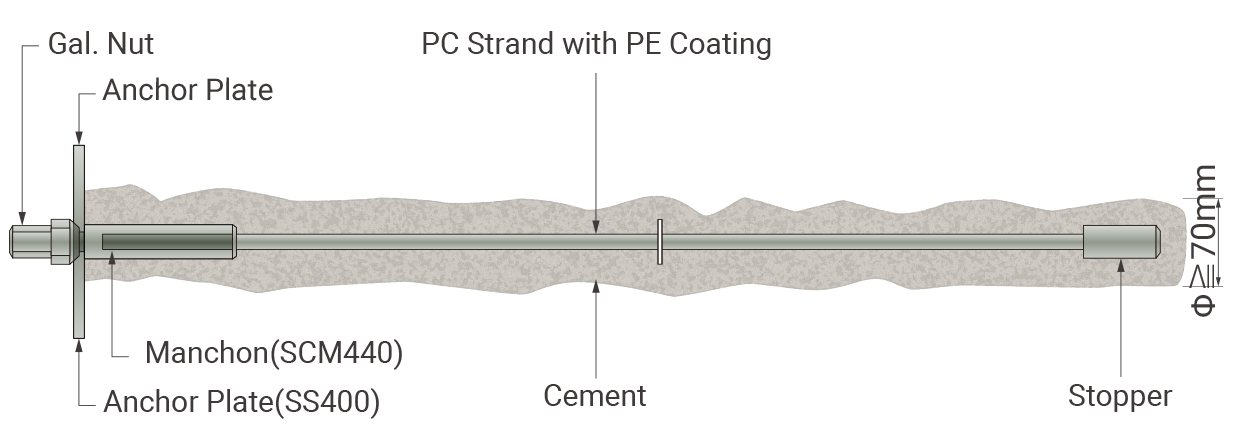

Rock Bolt

N.T.S (mm)

Features

  • Re-tensionable: The anchor rod is locked with a threaded nut, allowing for convenient future prestress inspections and re-tensioning.
  • The outer layer of the steel strand is coated with PE material for corrosion protection.

Material Specifications

  • The anchor rod is made from PC steel strands available in three sizes: 12.7mm, 15.2mm, and 17.8mm.
  • Coating Material: PE (Polyethylene).)
  • The pressure plate is made of SS400 material.
  • The nut is made of S45C material.
Customised Production

We customise the design and product based on your need

Contact us
